The galvanic separation unit GSI127 is is designed for operation with the signal conditioners, charge amplifiers and electronics (attached or integrated) used by measurement chains and/or sensors. GSI127 present in 2-wire transmission systems intended for Ex applications (use in potentially explosive atmospheres).
It is used to supply power to the signal conditioner. It also reads the signal coming from the signal conditioner and outputs a voltage-based signal proportional to the current delivered by the charge converter. This voltage signal can be used directly by the electronic monitoring system.

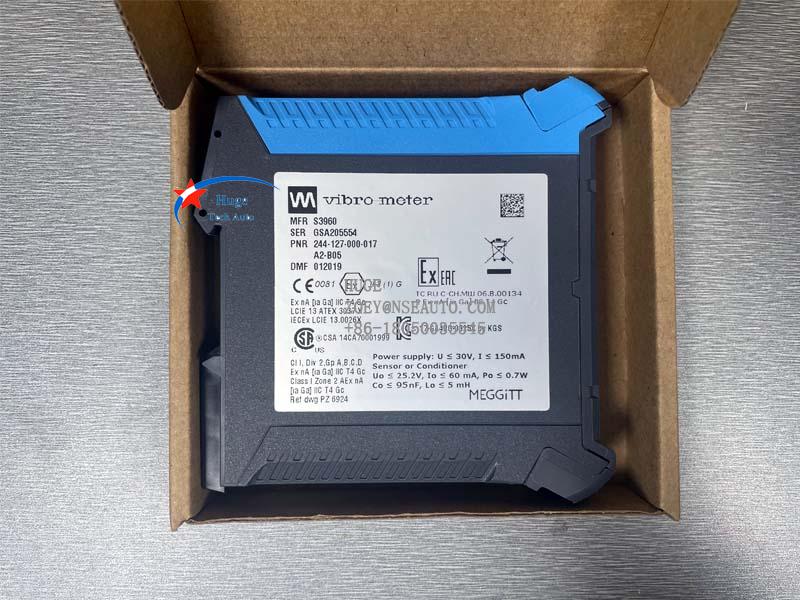

GSI 127 old version with the ordering number 244-127-000-017 is replaced by the upgrade one 244-127-000-021. The new version includes many improvements such as suitable for use in safety-related applications, extended the operating terperature range. The specific major improvements as below:
In a conclusion, GSI127 244-127-000-021 can totally replace of GSI127 244-127-000-017 without any impact on customer applications.
